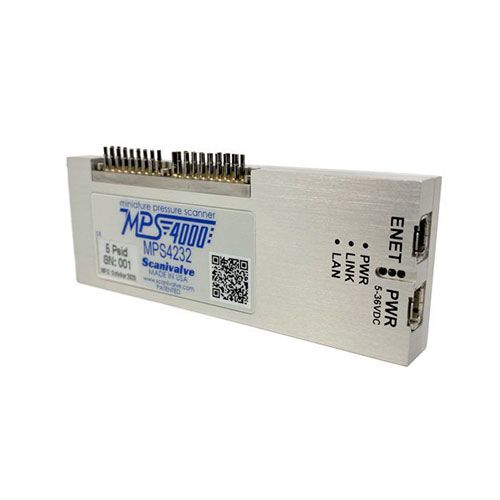

The MPS scanner is a complete data acquisition system, simply requiring a dc power source (5-36Vdc) and an Ethernet connection. It has a very small footprint, TCP/IP connectivity, IEEE1588 support, and a wealth of other innovative features. The entire MPS4000 scanner is built around a brand new ultra-stable pressure sensor.

Features and Specifications

  • Engineering Unit Data Stream up to 1,000Hz (Samples/Channel/Second)
  • ±0.06% Full-Scale, Long-Term Accuracy
  • 0 – 100psi Pressure Range
  • Non-Multiplexed, Synchronous Scanning
  • IEEE1588-2008v2 PTP Compliant
  • 24-bit A/D Converters
  • Dual-core processor
  • Removable input header
  • Integrated Web Server
