The MPS4200 is a 16 or 32 channel miniature ethernet pressure scanner representing the forefront of pressure measurement technology. The MPS4200 electronic pressure scanning module is specifically designed for use in wind tunnel and flight test applications where operational conditions are very space constrained and pressures do not exceed 100 psi. It has a very small footprint, TCP/IP connectivity, IEEE1588 support, and a wealth of other innovative features.
Features and Specifications:

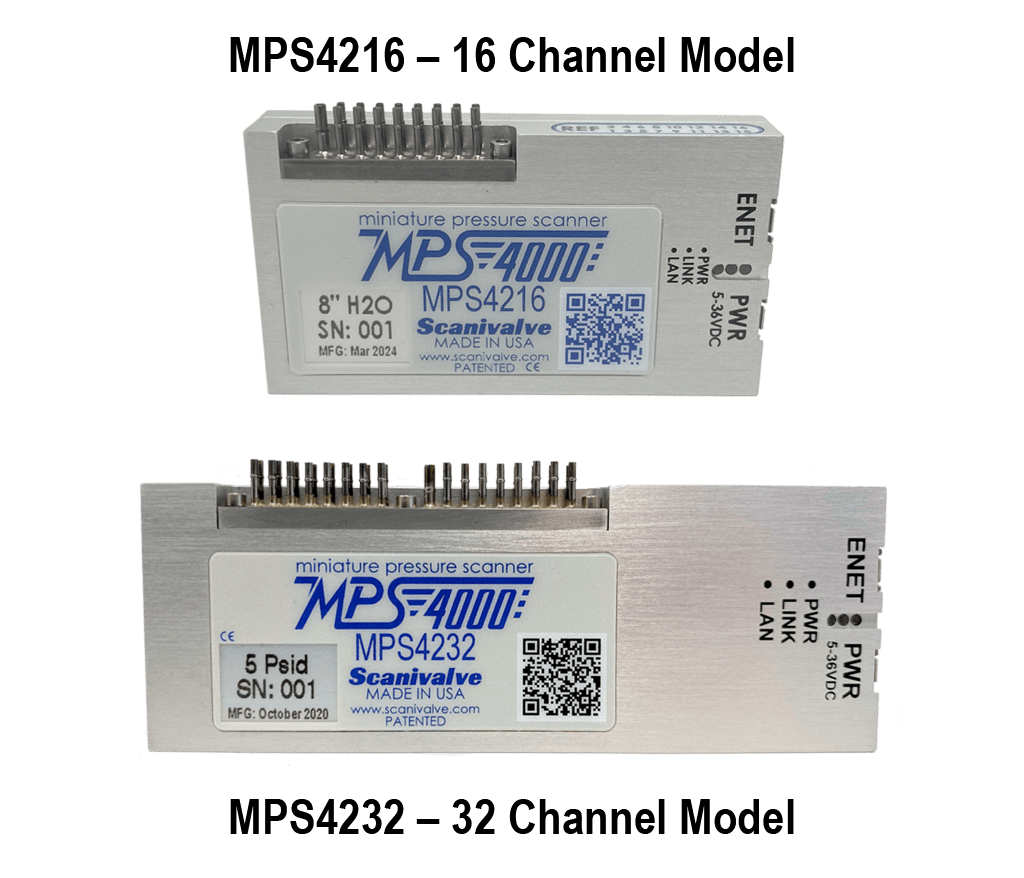

• Available with 16 or 32 pressure channels
• Data Output Rate: Up to 2,500 Hz (samples/channel/second)
• Accuracy: Up to 0.06% Full Scale
• Pressure Range: From 4 in-H2O (1.0 kPa) up to 100 psid (689.5 kPa)

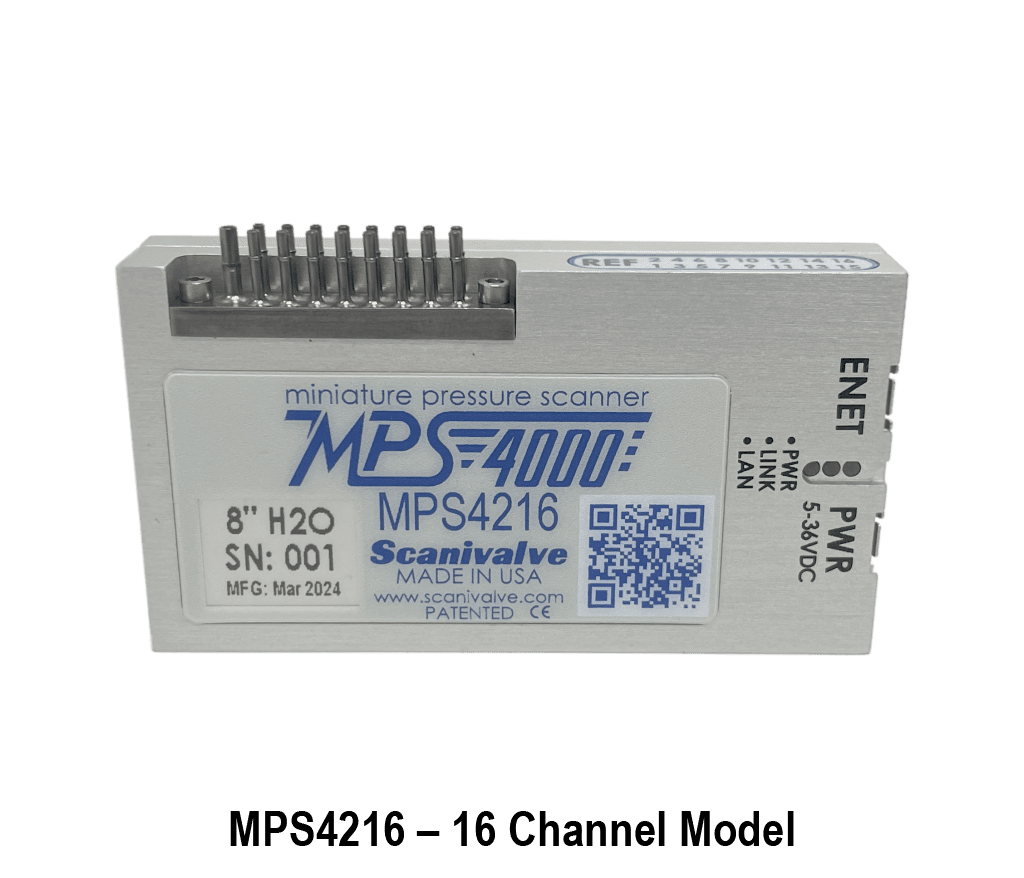

• 16 Channel Model Dimensions: 2.75” x 1.62” x 0.50” (69.9 x 41.2 x 12.7 mm)
• 32 Channel Model Dimensions: 4.13” x 1.62” x 0.50” (104.8 x 41.2 x 12.7 mm)
• 16 Channel Model Weight: 0.12 lbs (53 g)
• 32 Channel Model Weight: 0.19 lbs (86 g)
• A/D Resolution: 24-bit
• IEEE1588-2008v2 PTP compliant
• 64 Channel Model (MPS4264) also available
