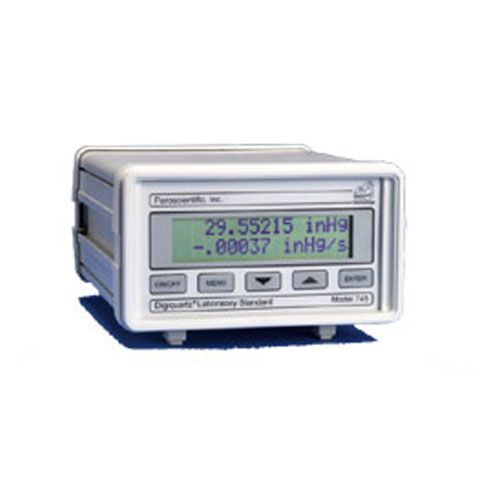

The Model 745 Portable Transfer Standards provide the highest accuracy pressure measurements for laboratory and metrological applications. Turn it on and immediately read the pressure values in any of nine different user-selectable engineering units. All pressure readings are fully temperature compensated and linearized. Tare functions, pressure units, temperature units, resolution, sampling time, number of display digits, communication settings, baud rates, sensor address, and passwords can be selected via the front panel menu system. The simple, intuitive front-panel user interface and versatile functionality with the rear panel RS-232 computer interface make the Model 745 the best choice for high performance pressure calibrations.
Features and Specifications:
• Absolute Pressure Range: 15 … 40,000 psia (0.10 … 276 MPa)
• Gauge Pressure Range: 15 … 200 psig (0.10 … 1.38 MPa)
• Barometric Range: 7 – 16 psia (50 – 110 kPa)
• Accuracy: Up to 0.008% Full Scale
• Achievable Pressure Resolution: 10 ppb (0.001 Pa) or better
• VCR Fitting version is available
