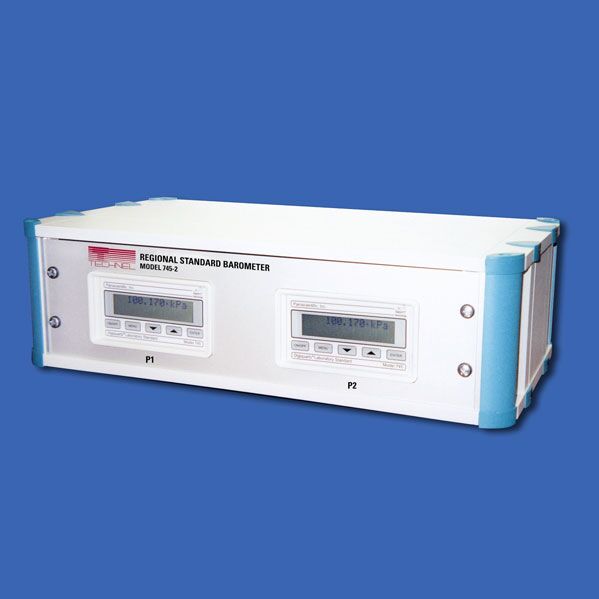

The 745-2 Regional Standard Barometer is a custom Technel unit developed for Environment & Climate Change Canada

SPECIFICATIONS:

745-2 Regional Standard Barometer, consisting of:

  • 2 Paroscientific model 745-16B Lab standard with the following features:
  • Accuracy: 0.008%
  • Resolution = 0.0001%
  • Password protection
  • Rate of pressure change
  • Adjustable number of display digits
  • Sensor temperature
  • Pressure bar graph
  • Front panel Menu system with two-lines display
  • 110VAC or battery operation
  • Range: 800-1100 mBars
  • Custom front mounting plate with silk screening
  • Custom back panel with two pressure ports, RS-232
  • Plumbed with AN-4 fittings, S/S tabulations and wired
  • Units mounted on a custom plate for easy access and battery replacement
  • ISO 9001 quality system
  • NIST traceable calibration – Optional ISO-17025 calibration
  • Calibration and operational SW compatible with all Paroscientific units
