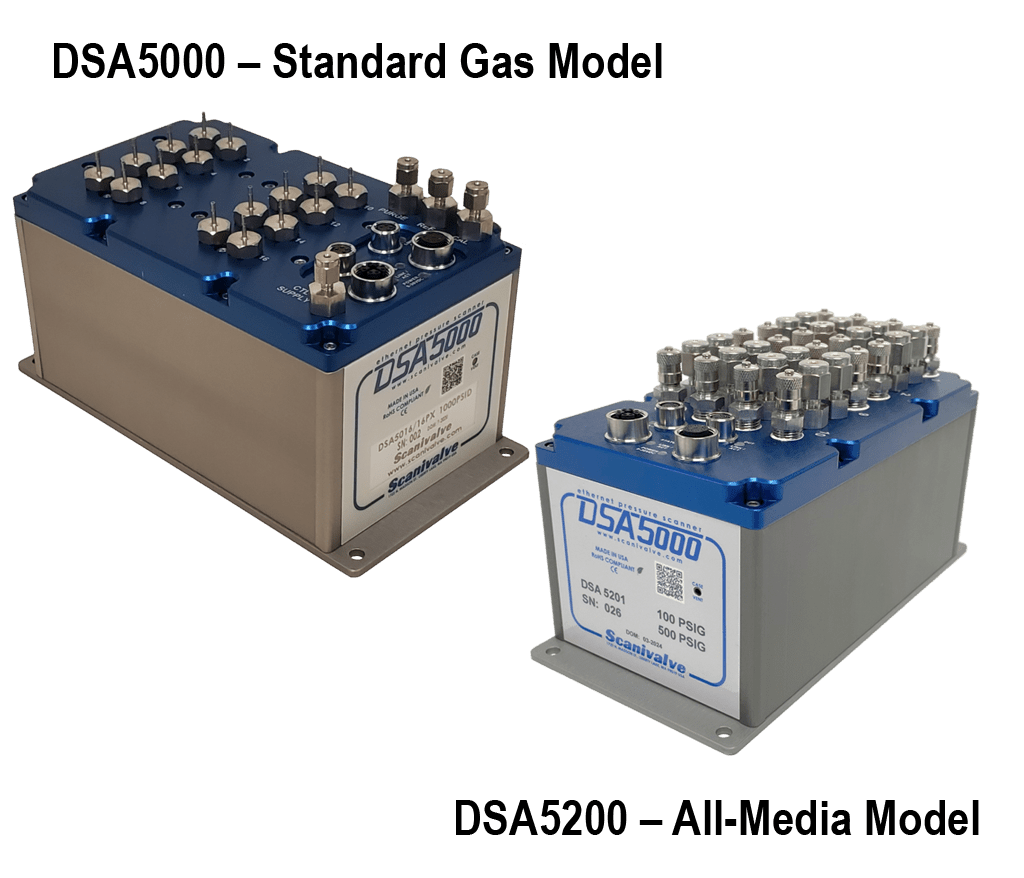

The DSA5000 is designed to output an engineering unit data stream over an Ethernet connection. A broad selection of data output formats and options are available including TCP/IP, UDP and FTP data transfer protocols, and ASCII and Binary formats. A Webserver is fully integrated providing an intuitive and easy means for configuration and operation. Scanivalve has also developed and engineered a new and unique form of connectivity called Scanivalve Synchronous Ethernet Protocol, or SSEP. This proprietary feature allows for a single DSA5000 ‘controller’ to be used to control and collect data from several other DSA5000 modules connected to an isolated, mini network.
Features and Specifications
- Engineering Unit Data Stream up to 5,000Hz (Samples/Channel/Second)
- ±0.04% Full-Scale, Long-Term Accuracy
- 0 – 1,000psi Pressure Range
- Non-Multiplexed, Synchronous Scanning
- IEEE1588-2008v2 PTP Compliant
- 1Gb Ethernet Connection
- 24-bit A/D Converters
- Multi-Drop Architecture for Multiple Module Simplicity
- Integrated Web Server
- Customizable Builds: “QD” (Quick Disconnect) Input Header Option, Integrated Heater Option, Bolt-on Shock Mount Option, Multiple Pneumatic Fitting Options
