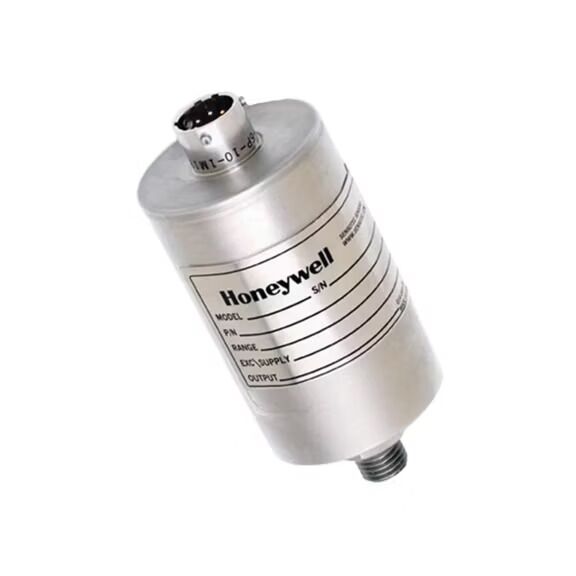

Model TJE pressure transducers are all-welded stainless steel sensors built for rugged industrial applications that require high accuracy and measurement stability. The Model TJE is available with a variety of options for extended temperature operation, electrical terminations and high-level outputs including 5 Vdc or 10 Vdc and 4 mA to 20 mA.
Features and Specifications:
• Pressure Ranges: From 1 psig/a (6.9 kPa) up to 60,000 psig/a (413.7 MPa)
• Accuracy: 0.1% Full Scale or 0.05% Full Scale (Super TJE)
• Frequency Response for Standard Output (mV/V): Natural frequency of model (500 Hz to >100 kHz), dependent on pressure range
• Frequency Response for Amplified Outputs: 2000 Hz, 2500 Hz, or 3000 Hz
