The Y-line transmitters have an extremely small temperature error. This is achieved using an additional circuit containing a temperature sensor that subdivides the temperature range into fields that are 1,5 Kelvin (K) wide. The TK zero and TK compensation values are calculated for each field and programmed into the additional circuit. During operation, these values are fed into the analogue signal path depending on the temperature. Each temperature is the “calibration temperature” for this transmitter.

The Series 23 (S)Y/25 Y product line is outstanding due to its extreme ruggedness towards electromagnetic fields.

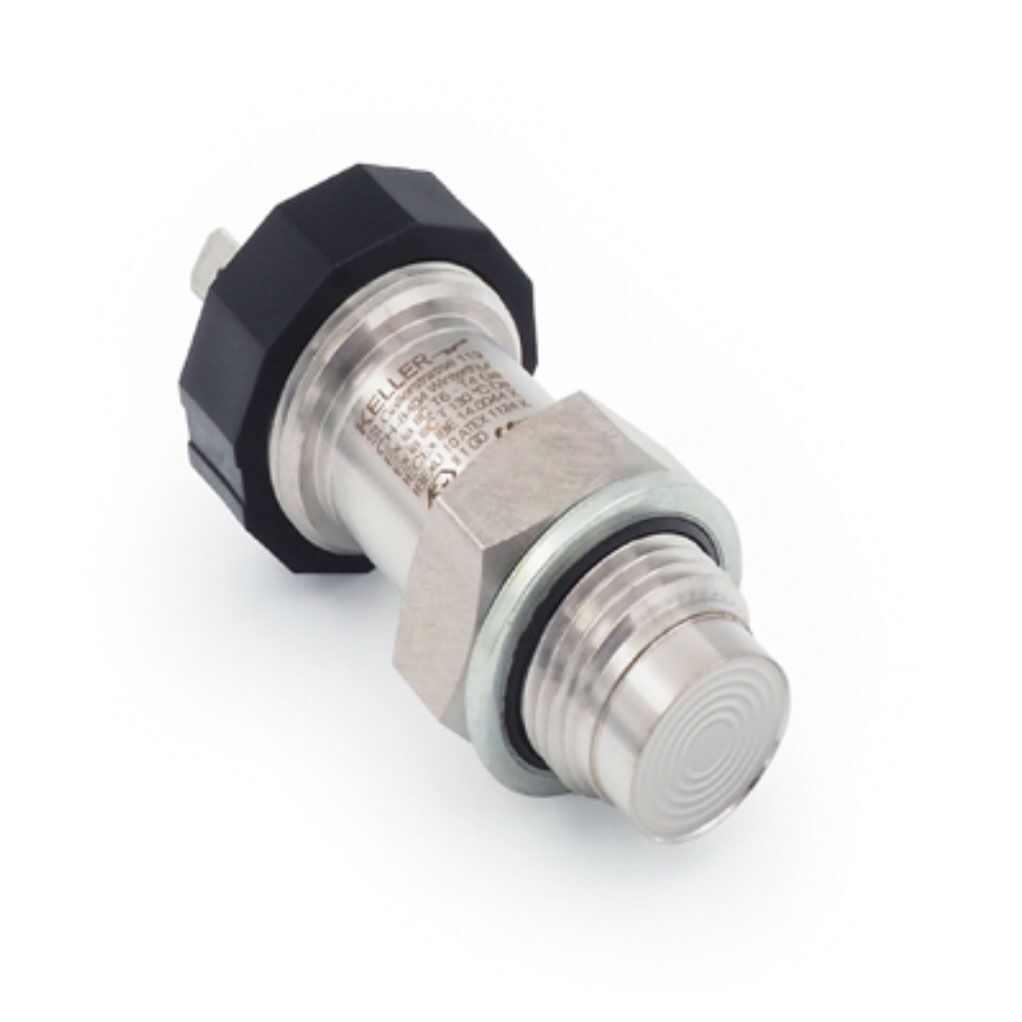

The EI versions of these piezoresistive pressure transmitters, , are approved for use in highly explosion risk areas of group II (gas and dust).
Pressure Range: up to 1,000 bar, typical accuracy: ±0.30%FS
