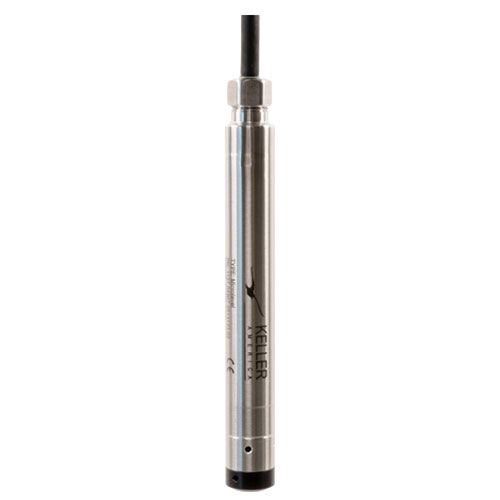

The Keller Microlevel is the smallest diameter submersible transmitter in its class. Ideally suited for down-hole and driven well applications the Microlevel combines all the advantages as the Acculevel into a smaller, more convenient package.
Available pressure ranges: user-selectable from 0-3 to 900 ft of water
Accuracy: 0.25% FS TEB, Optional Accuracy: 0.1% FS
Temperature compensated 0°C to 80°C
Electrical Input: 10 – 30V DC with built-in lightning/surge protection.
Output: RS-485 and 4..20 mA
Physical Dimensions Ø0.63″ x 4.9″
Cable: Hytrel jacketed, Shielded, vented 5-wire. Ø0.23″. User-replaceable.
