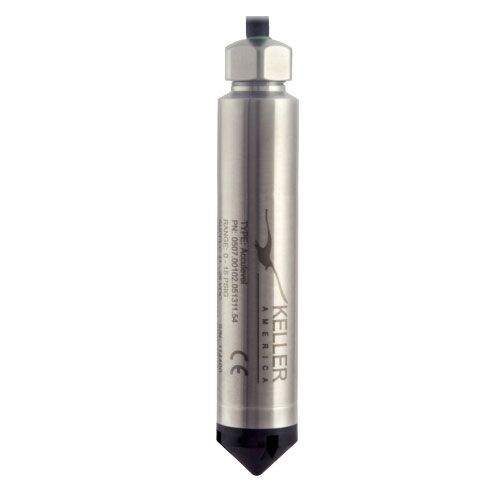

The Keller Acculevel is a flexible, high-accuracy, submersible pressure transmitter. The extremely rugged body is available in 316 Stainless Steel, Hastelloy, and Titanium for corrosion resistance. The Acculevel is ideal for applications ranging from hydroelectric reservoir recording to drop-in tank level monitoring.

Available pressure ranges: user-selectable from 0-3 to 900 ft of water
Accuracy: 0.25% FS TEB, Optional Accuracy: 0.1% FS
Temperature compensated -10°C to 80°C
Electrical Input: 8 – 28V DC with built-in lightning/surge protection.
Output: RS-485 and 4..20 mA or 0-5V or 0-10V
Physical Dimensions Ø0.825″ x 4.3″
Cable: Hytrel jacketed, Shielded, vented 5-wire. Ø0.23″. User-replaceable.
MODBUS Compatible.
A 1/2″ conduit fitting is available for all Keller transducers.
