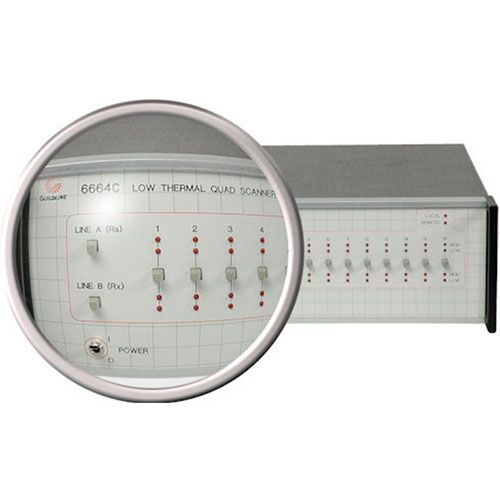

Guildline’s 6664C Low Thermal Quad Scanner is the first commercial scanner capable of operating at 1000V. This has greatly improved the measurement/calibration throughput of standards laboratories, since many high ohm measurements can now be automated.
Withstands up to 1000 VDC to provide fully automated resistance measurements
Each Channel handles Up to 2 Amps
Contact Life: >10,000,000 Cycles
4 Terminal Switching Matrix, 8 or 16 Channel Inputs, 2 Channel Outputs
8 Channel is upgradeable to 16 Channels
Gold Flashed Tellurium Copper Terminals
