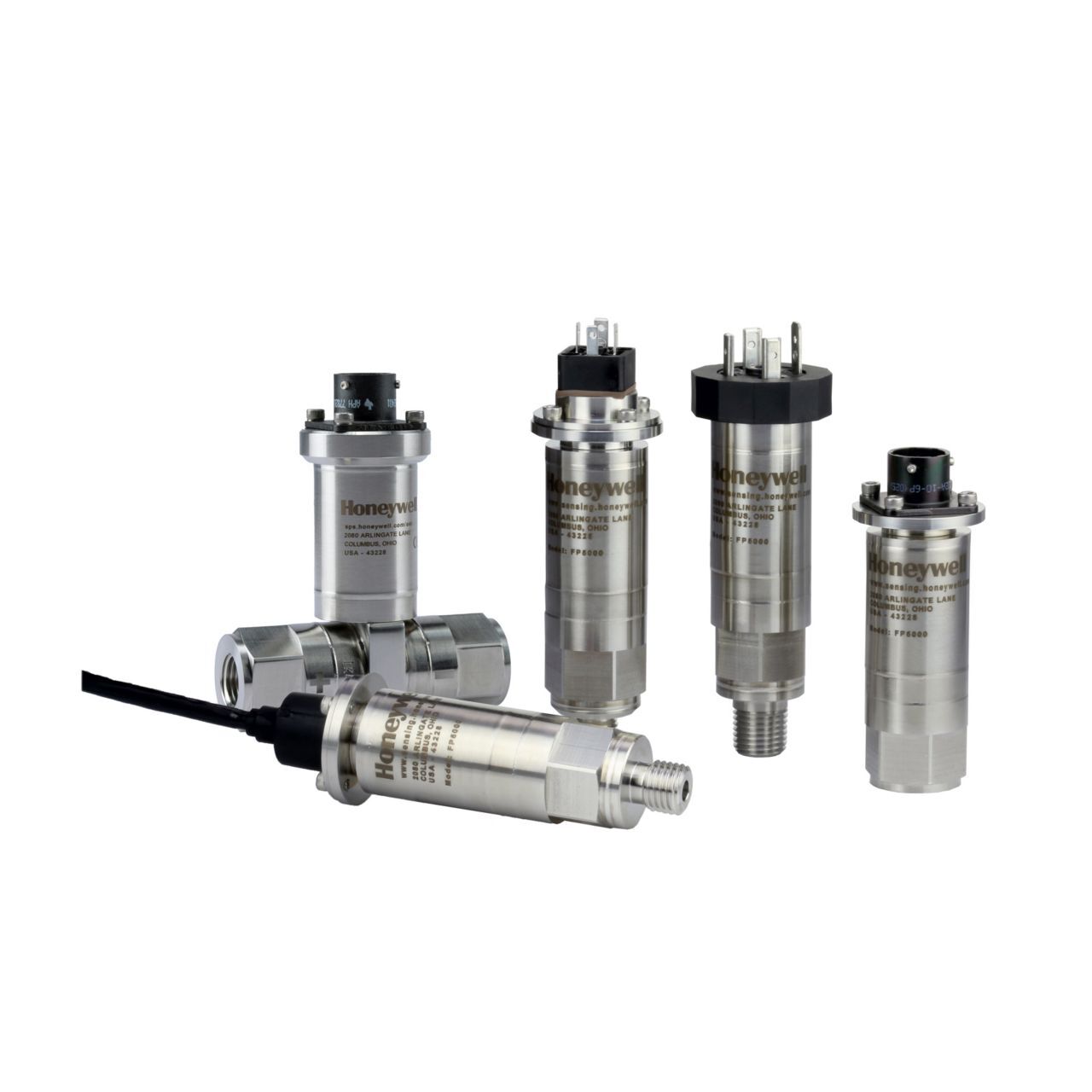

The Honeywell Model FP5000 Series is a media-isolated piezoresistive silicon pressure sensor offering multiple output options (0 V to 5 V, 0 V to 10 V or 4 mA to 20 mA) It is compensated for sensor offset, sensitivity, temperature effects, and non-linearity to offer improved thermal stability and accuracy. Hastelloy® C276 and 316L stainless steel wetted parts provide durability with abrasive or corrosive media
Features and Specifications:
• Pressure ranges: From 10 in-H2O (2.5 kPa) up to 5,000 psi (344.7 MPa), gauge & absolute
• Accuracy: Up to 0.1% Full Scale
• Frequency response: 3500 Hz
